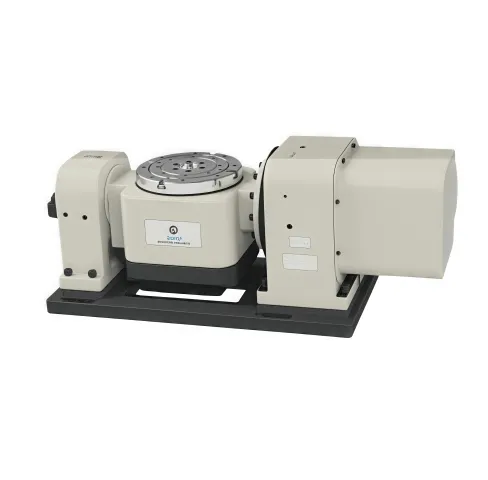

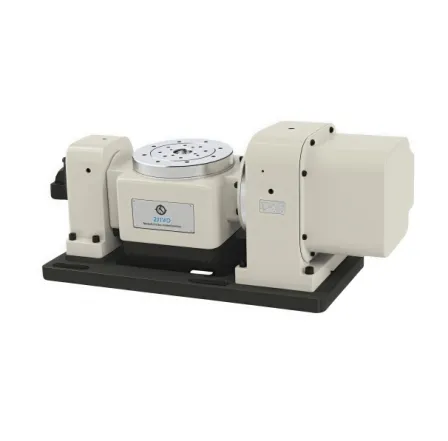

A high-rigidity 5-axis rotary table designed for complex and precise multi-face machining applications.
Engineered with a cycloidal-pin wheel reduction mechanism to ensure maximum transmission rigidity and durability.
Features a powerful pneumatic locking system for stable and secure workpiece clamping during heavy machining operations.
Built with a multi-seal and positive air pressure design, offering superior waterproof performance in coolant-rich environments.
Offers broad compatibility with leading CNC systems including Mitsubishi, FANUC, and Shindai for seamless integration.
Achieves high transmission accuracy of 30 arc-seconds and repeatability of 10 arc-seconds for precision-critical components.
Suitable for processing components in demanding industries such as aerospace, new energy vehicles, and 3C products.
Rotary Table Diameter: ∅170 mm
Rotation/Tilt Range: 360° (Rotation) / ±110° (Tilt)
Transmission Accuracy: 30 arc-seconds
Repeatability Precision: 10 arc-seconds
Maximum Allowable Speed: 45 RPM
Allowable Horizontal Load: 62 kg
